About this ebike...

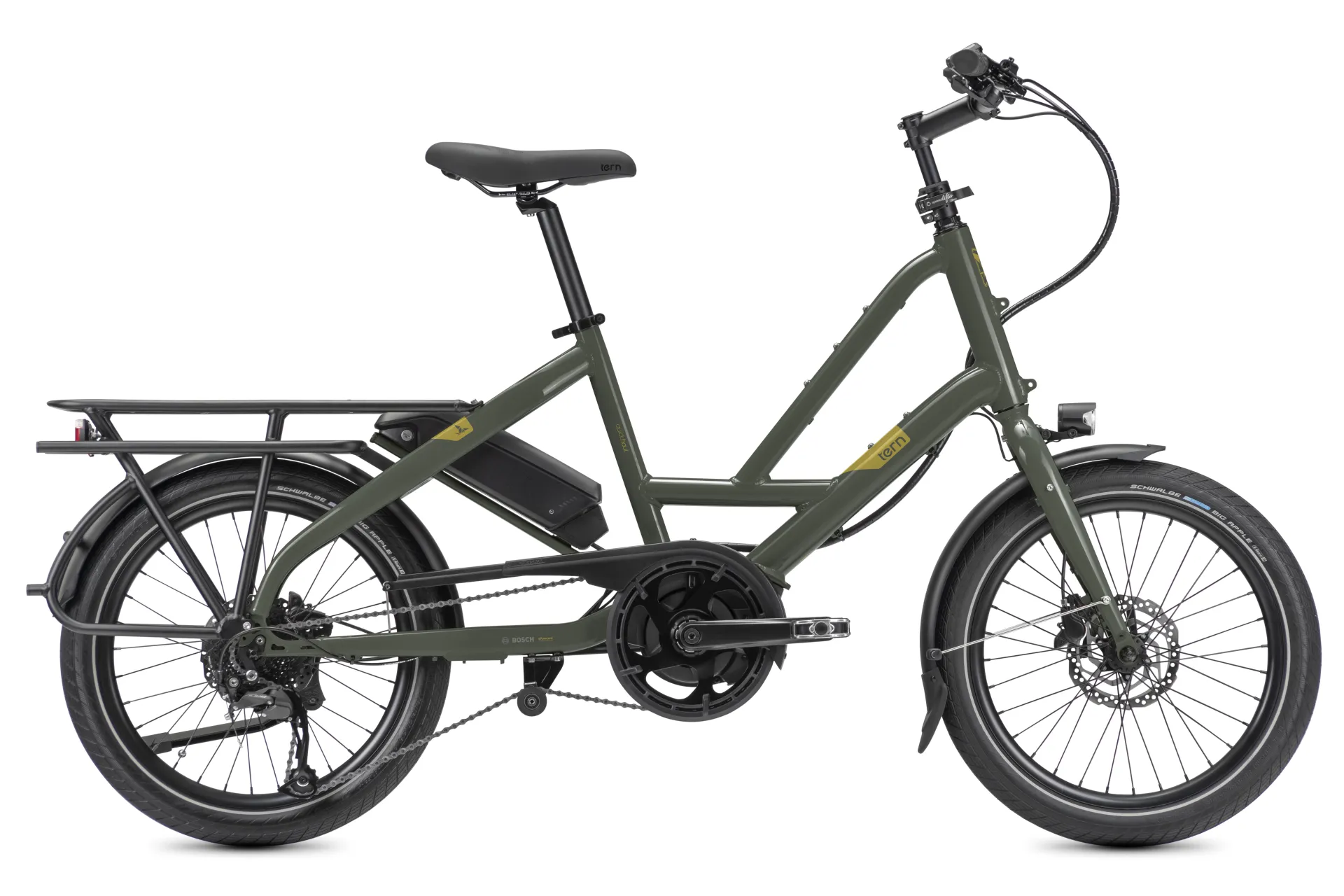

The Quick Haul P9 is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multi-tool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.
What Makes it a P9?
- Bosch Performance Line Cruise motor provides up to 65 Nm of torque and 300% support.
- 1×9-speed Shimano Alivio groupset with trigger shifter.
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack.
- Fits riders 160 – 195 cm (5’3” – 6’5”), and also riders 145 – 180 cm (4’9” – 5’11”) when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup.
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier.
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast.
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight.
Trial this ebike
Fancy taking this ebike for a test ride yourself?
We think it’s important to make sure this ebike feels perfect for you so come along and have a free test ride!
TRIAL THIS EBIKE
Customise this ebike
We know that sometimes you need to adjust a bike to make it a perfect fit and feel “right”. Sometimes it’s just a tweak to the handlebars maybe. Sometimes you may want a different saddle. We will try to make your bike just right for you.
FIND OUT MOREFeatures we love
Practical The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.
Modular and Customizable Choose from a vast array of accessories to turn your Quick Haul into the ideal tool for all your jobs. The Quick Haul’s accessories ecosystem offers perfect-fit options for your commute, your kid’s school run, doggy play dates, errands, and lots more.
Shareable If you were buying a car, you’d assume your spouse, partner, teenager, and best friend could use it, too. The same should go for your e-bike, which is why the Quick Haul has an adjustable stem and seatpost to fit riders 160 - 195 cm (5’3” - 6’5”).
Shorter rider? No problem. The Quick Haul also fits riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter seatpost (350 mm).
Shorter rider? No problem. The Quick Haul also fits riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter seatpost (350 mm).
Fun to Ride The Quick Haul features the unbeatably smooth Bosch motor system paired with stable yet responsive geometry. The result: a bike that’s as fun to ride as it is useful. The cockpit offers a comfy riding position similar to your favorite hybrid or trekking bike—perfect for turning everyday chores into mini adventures.
Carrying Capacity The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
Built to Last Tern's philosophy is to keep their bikes on the road for as long as possible, not to create disposable products that are built to fail. They start with intentional design choices that make the bike serviceable and safe—and end up with a reliable vehicle you can use day in, day out. Then, they back it up with great local service and a 10-year warranty for peace of mind.
The Nitty Gritty
Range 400 Wh: 53 - 105 km (32.9 - 65.2 mi)
Motor Bosch Performance Motor
Weight 22.9 kg (50.5 lb)
Gears Shimano Alivio Shadow, 1 x 9 speed
Full specification
WHEEL SIZE: 20" wheels
SPEEDS: 1 x 9
WEIGHT 22.9 kg (50.5 lb)
GEAR INCHES 31" - 95" (2.45 - 7.57 m)
FRAME SIZES One size
DISTANCE: SEATPOST TO HANDLEBAR 60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL 68 - 110 cm (26.8 - 43.3 in)
SUGGESTED RIDER HEIGHT 160 - 195 cm (63 - 76.8 in)
MAX GROSS VEHICLE WEIGHT 150 kg (330.7 lb)
MAX RIDER WEIGHT 120 kg (264.6 lb)
FRAME Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK Cargo, steel, EFBE approved: 150 kg
STEM Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET TH, cartridge bearings
HANDLEBAR Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE Velo ergonomic, lock-on
SADDLE Velo Comfort
SEATPOST 34.9 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP Tern Collar
FRONT BRAKE Shimano, hydraulic disc
REAR BRAKE Shimano, hydraulic disc
BRAKE LEVERS Shimano, hydraulic disc
BRAKE CABLE AND HOUSING Shimano, hydraulic disc
FRONT HUB Shimano disc
REAR HUB Shimano disc
SPOKES AND NIPPLES Stainless steel
RIMS Kinetix Comp, for disc
TYRES Schwalbe Big Apple, 55-406, puncture protection, Reflex
SHIFTERS Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR Shimano Alivio Shadow
CRANKSET Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL Shimano 11-34T, 9 spd
BOTTOM BRACKET Motor integrated
CHAIN KMC for eBike, 9 spd
PEDALS Urban with non-slip surface
SHIFTER CABLE & HOUSING SP
MOTOR Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY Bosch PowerPack 400

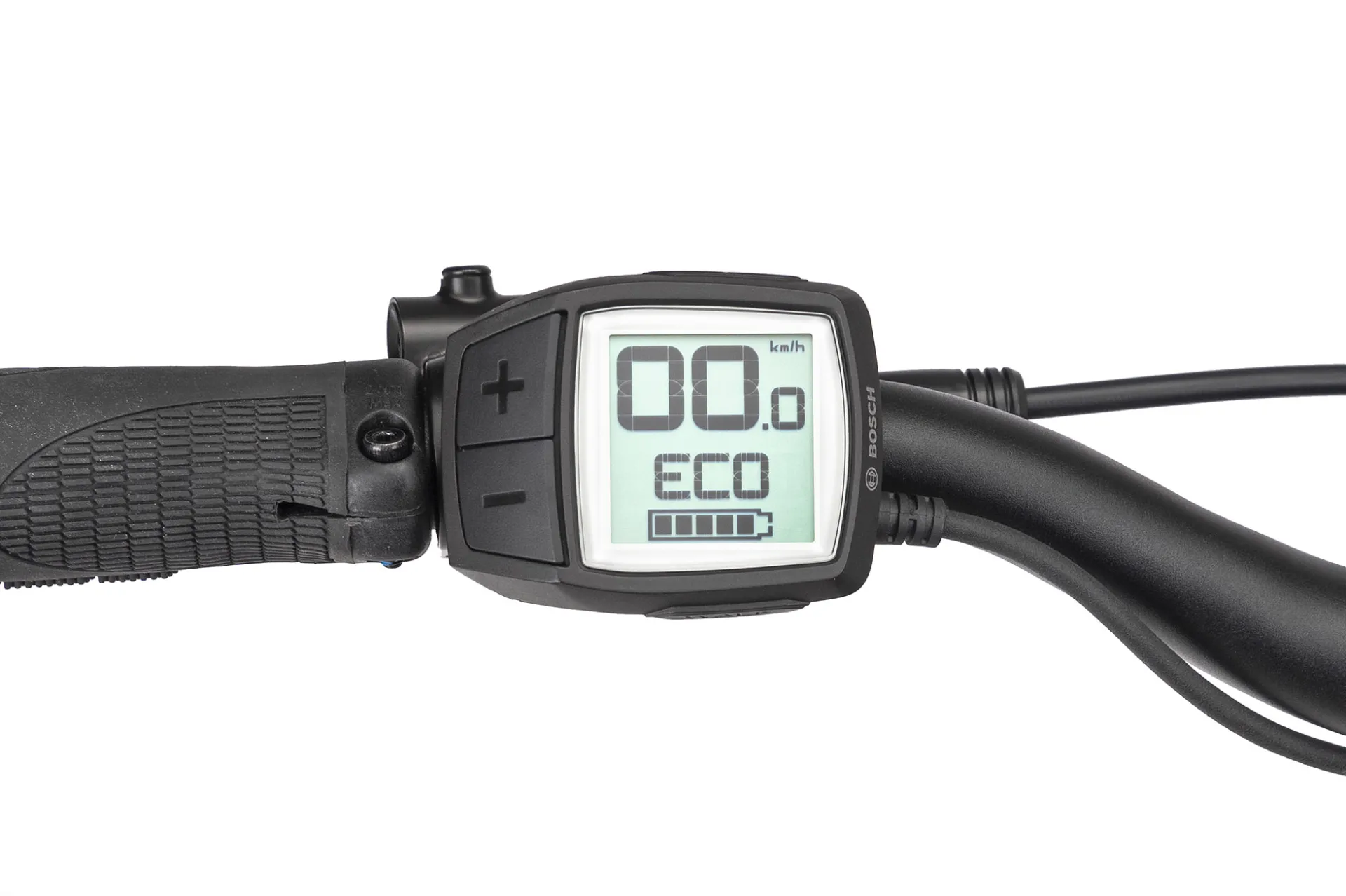

DISPLAY Bosch Purion
RANGE 400 Wh: 53 - 105 km (32.9 - 65.2 mi)
CHARGER Compact Charger, 100-240V, 2A
BELL Aluminum
CHAINGUARD SKS Chainblade
KICKSTAND Pletscher design, rear mount
LUGGAGE SOCKET Combo Mount
FRONT LIGHT Herrmans, 120 lumens

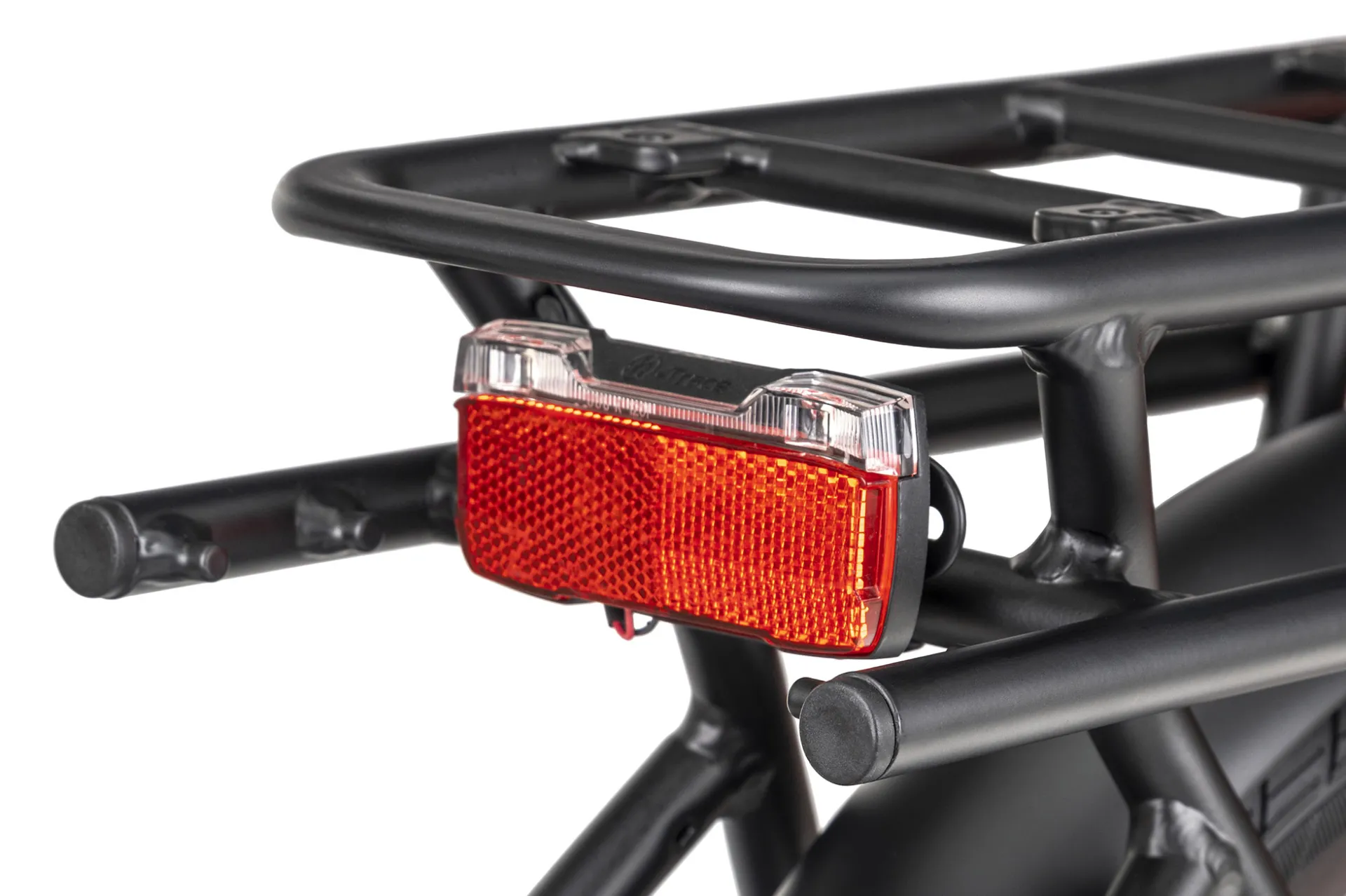

REAR LIGHT Herrmans
FENDERS Chromeplastic, stainless hardware
RACK(S) Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Is this the right ebike for me?
The Quick Haul is Tern’s most affordable E-Cargo Bike for everyday life. You can also tailor your Tern bike to fit your needs—whether that’s commuting, giving a lift to a loved one (or two!), or grocery shopping, Tern’s range of accessories make it easy to reach for your bike instead of the car keys.
SPEAK TO OUR EBIKE EXPERTS "The Tern’s big selling point is that for all its cargo capacity and versatility, it’s actually no longer than a standard big-wheeled bike."
ebiketips
See the Tern Quick Haul P9 in action
Fancy taking this ebike for a test ride yourself?
We think it’s important to make sure this ebike feels perfect for you so come along and have a free test ride!
Visit our showroom
