About this ebike...

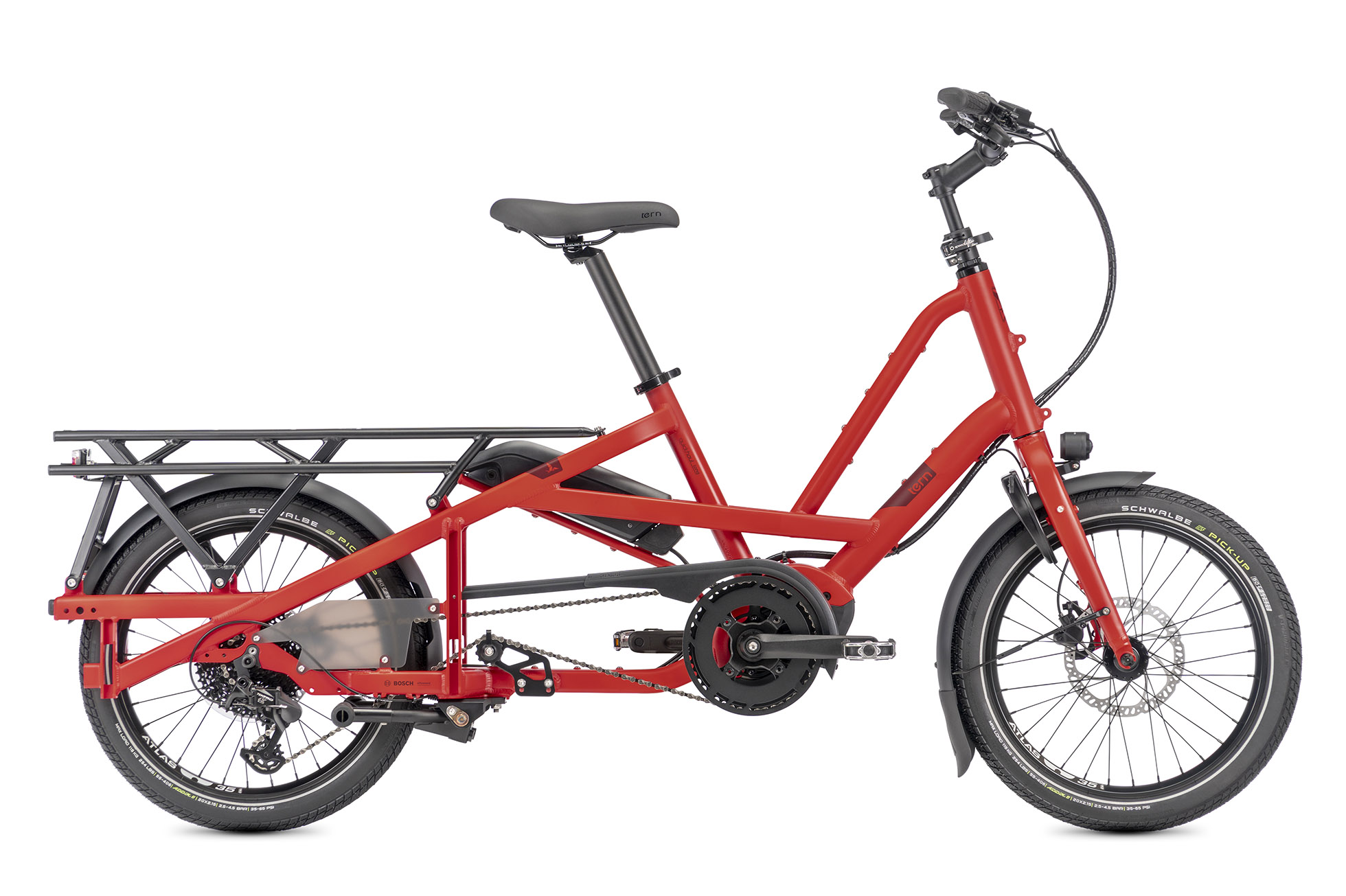

Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest Costco hauls. And best of all, it’s a funner, freer way to get around for you and your family without putting strain on the environment.
A True Passenger Vehicle:

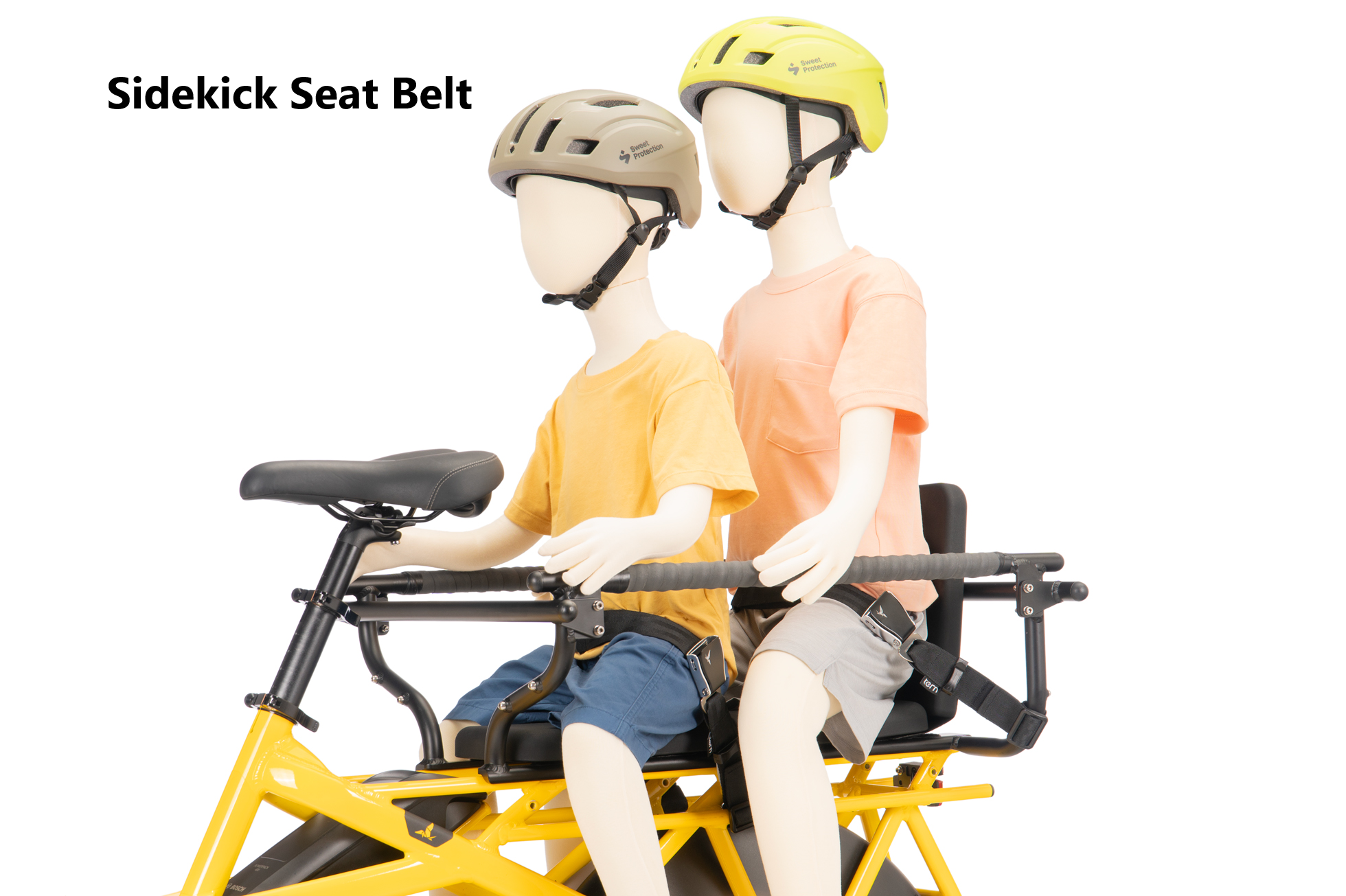

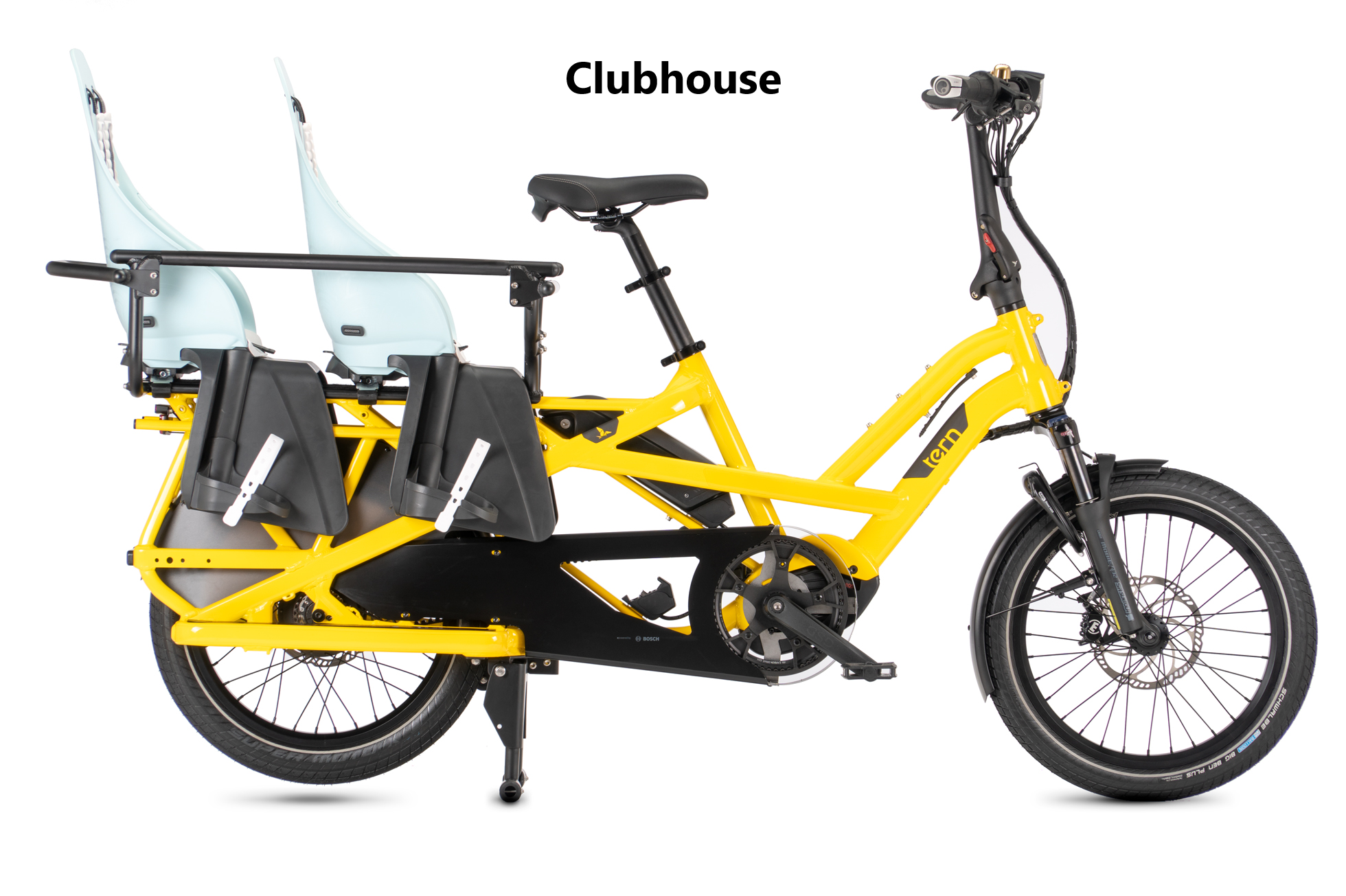

Planning to start a family, or expecting the arrival of baby number two? The modular and customizable Quick Haul Long is designed to grow with your family. Choose from Tern’s ecosystem of passenger-carrying accessories to transport up to 2 kids, or give your +1 a lift when it’s just the two of you.
Heavy-Duty Cargo Hauler:

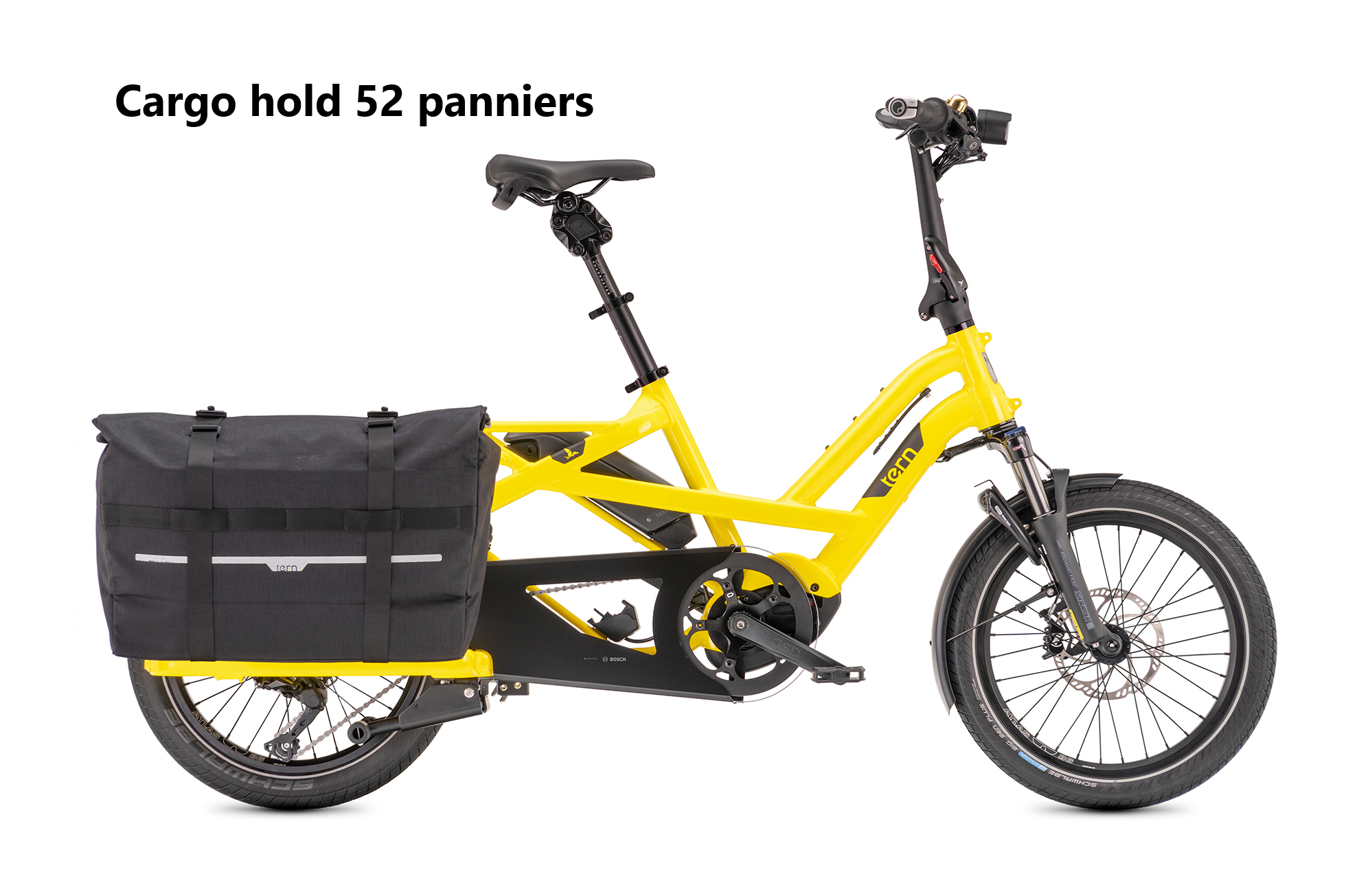

With a Max Gross Vehicle Weight of 190 kg (419 lb), Quick Haul Long is more than capable of your daily hauling needs. Whether it’s spring gardening supplies or a week’s worth of groceries, Tern’s wide range of accessories will help you utilize all that load capacity and keep your hauls manageable on the road.
Comfortably in Control:
Riding while carrying all that weight may sound intimidating, but you’re in good hands with the Quick Haul Long. Its long wheelbase combined with a low center of gravity ensures your ride remains stable even with an ambitious haul, while a low step-through frame makes getting on and off effortless. And at under 30 kg (66 lb) including the battery, even smaller riders will find themselves capable of handling the Quick Haul Long.
Share Your Ride:
Sharing a car with your spouse or partner makes sense, and it shouldn’t be any different for an e-bike. Quick Haul Long is made for easy sharing—with the flip of two levers, the stem and seatpost adjust in seconds without tools to fit riders 155 – 185 cm (5’1″ – 6’1″) tall, while a low step-through frame facilitates easy mounting and dismounting.
Trial this ebike
Fancy taking this ebike for a test ride yourself?
We think it’s important to make sure this ebike feels perfect for you so come along and have a free test ride!
TRIAL THIS EBIKE
Customise this ebike
We know that sometimes you need to adjust a bike to make it a perfect fit and feel “right”. Sometimes it’s just a tweak to the handlebars maybe. Sometimes you may want a different saddle. We will try to make your bike just right for you.
FIND OUT MOREFeatures we love
Compact Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats.
Bosch Cargo Line Motor Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
Safe and Convenient Charging The versatile PowerPack battery can easily be removed from the frame mount for fast-swapping and indoor charging, or left directly on the bike to charge.
Drivetrain Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting.
Safety Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements.
Fully Adjustable Adjusts without tools to fit riders 155 - 185 cm (5'1" - 6'1"), weighing up to 120 kg (265 lb)
The Nitty Gritty
Range 400 Wh: 42-85 km (26-53 mi)
Motor Bosch Cargo Line Motor
Weight 29.3 kg (64.6 lb)
Gears Tektro custom for Tern, 1 x 9 speed
Full specification
WHEEL SIZE: 20" wheels
SPEEDS: 1 x 9
WEIGHT 29.3 kg (64.6 lb)
GEAR INCHES 23" - 89" (1.87 - 7.13 m)
FRAME SIZES One size
DISTANCE: SEATPOST TO HANDLEBAR 60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL 76 - 99 cm (29.9 - 39 in)
SUGGESTED RIDER HEIGHT 155 - 185 cm (61 - 72.8 in)
MAX GROSS VEHICLE WEIGHT 190 kg (418.9 lb)
MAX RIDER WEIGHT 120 kg (264.6 lb)
FRAME Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
FORK Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

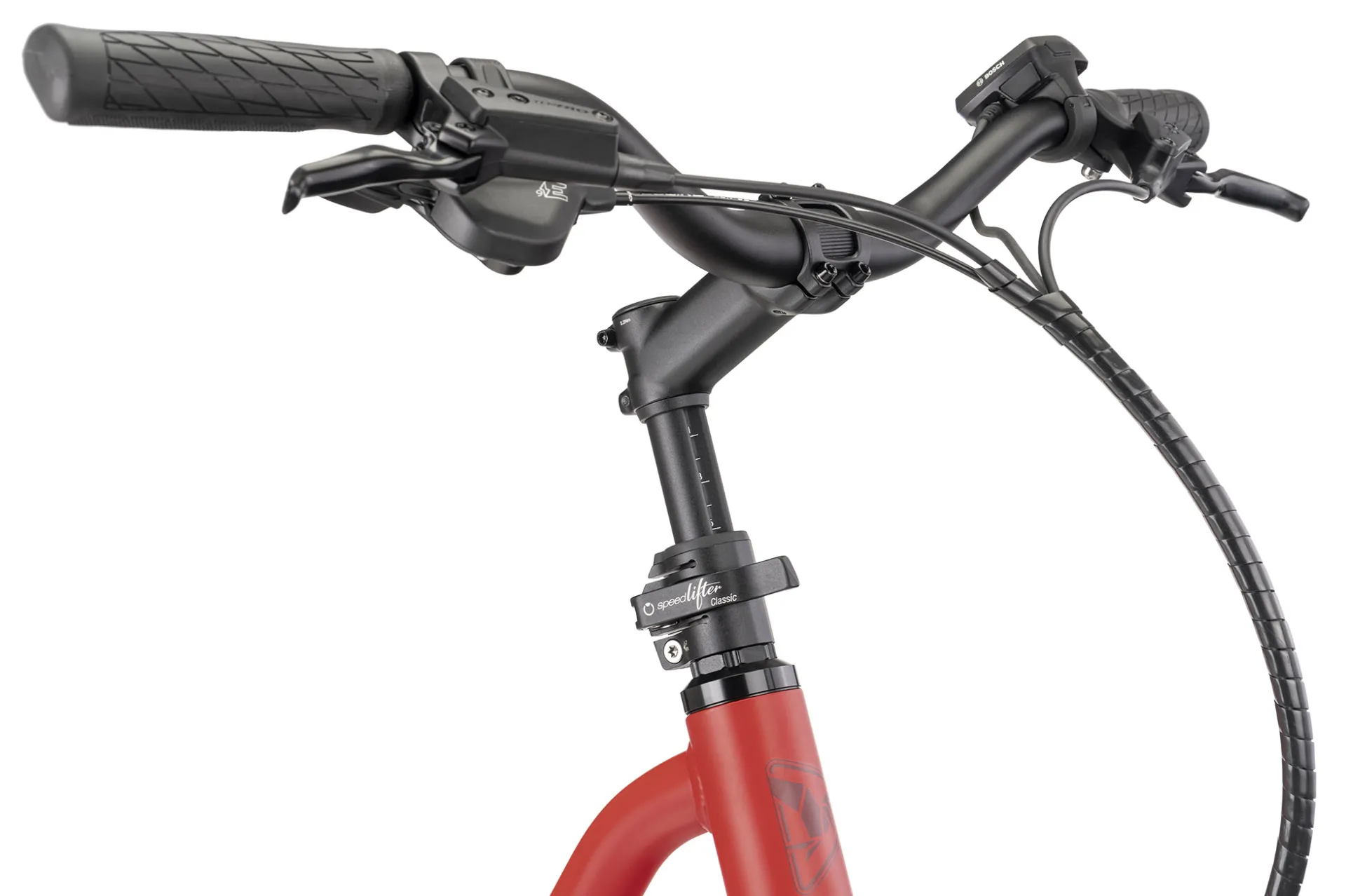

STEM Speedlifter, adjustable, 3D forged stem, 31.8
HEADSET TH, cartridge bearings
HANDLEBAR Low riser ergo, 31.8, 6061-AL
GRIPS/BAR TAPE Velo ergonomic, lock-on
SADDLE Velo Comfort
SEATPOST 34.9 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP Tern Collar
FRONT BRAKE Tektro hydraulic disc
REAR BRAKE Tektro hydraulic disc
BRAKE LEVERS Tektro hydraulic disc
FRONT HUB Disc, aluminum
REAR HUB 9 spd, disc, aluminum, Boost
SPOKES AND NIPPLES Stainless steel
RIMS Tern Atlas H, cargo

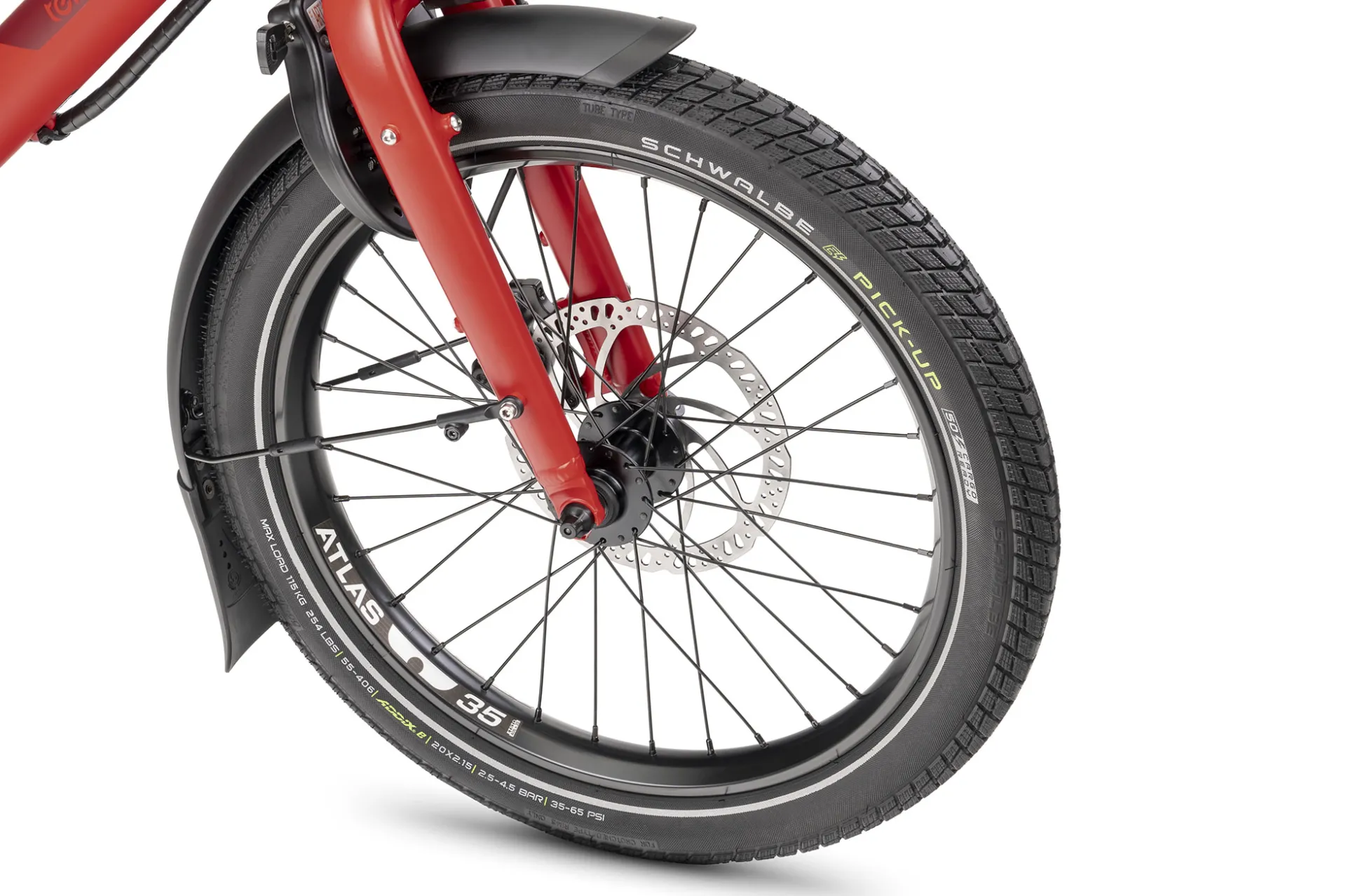

TYRES Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
SHIFTERS Tektro, 1 x 9 spd, trigger
REAR DERAILLEUR Tektro custom for Tern, 1 x 9 spd
CRANKSET Tern custom, forged 6061-AL crankarm, anti-drop chainring
CASSETTE/FREEWHEEL Tektro 11-42T, 9 spd
BOTTOM BRACKET Motor integrated
CHAIN KMC for eBike, 9 spd
PEDALS Urban with non-slip surface
SHIFTER CABLE & HOUSING SP
MOTOR Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY Bosch PowerPack 400

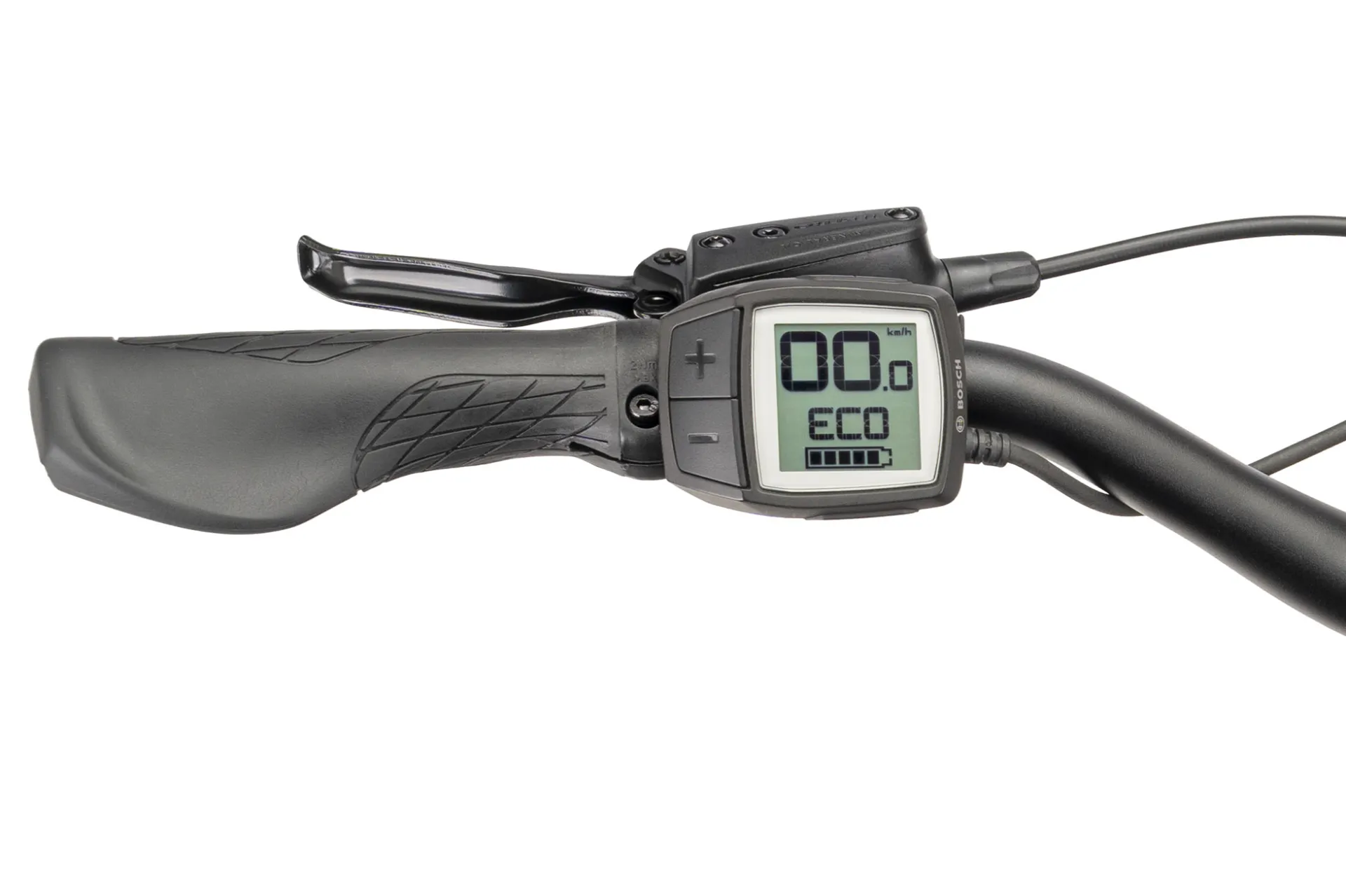

DISPLAY Bosch Purion, 4 mode selectable, walk assist
RANGE 400 Wh: 42-85 km (26-53 mi)
CHARGER 220V, 4A (EU); 100-240V, 4A (US)
BELL Aluminum
CHAINGUARD SKS Chainblade

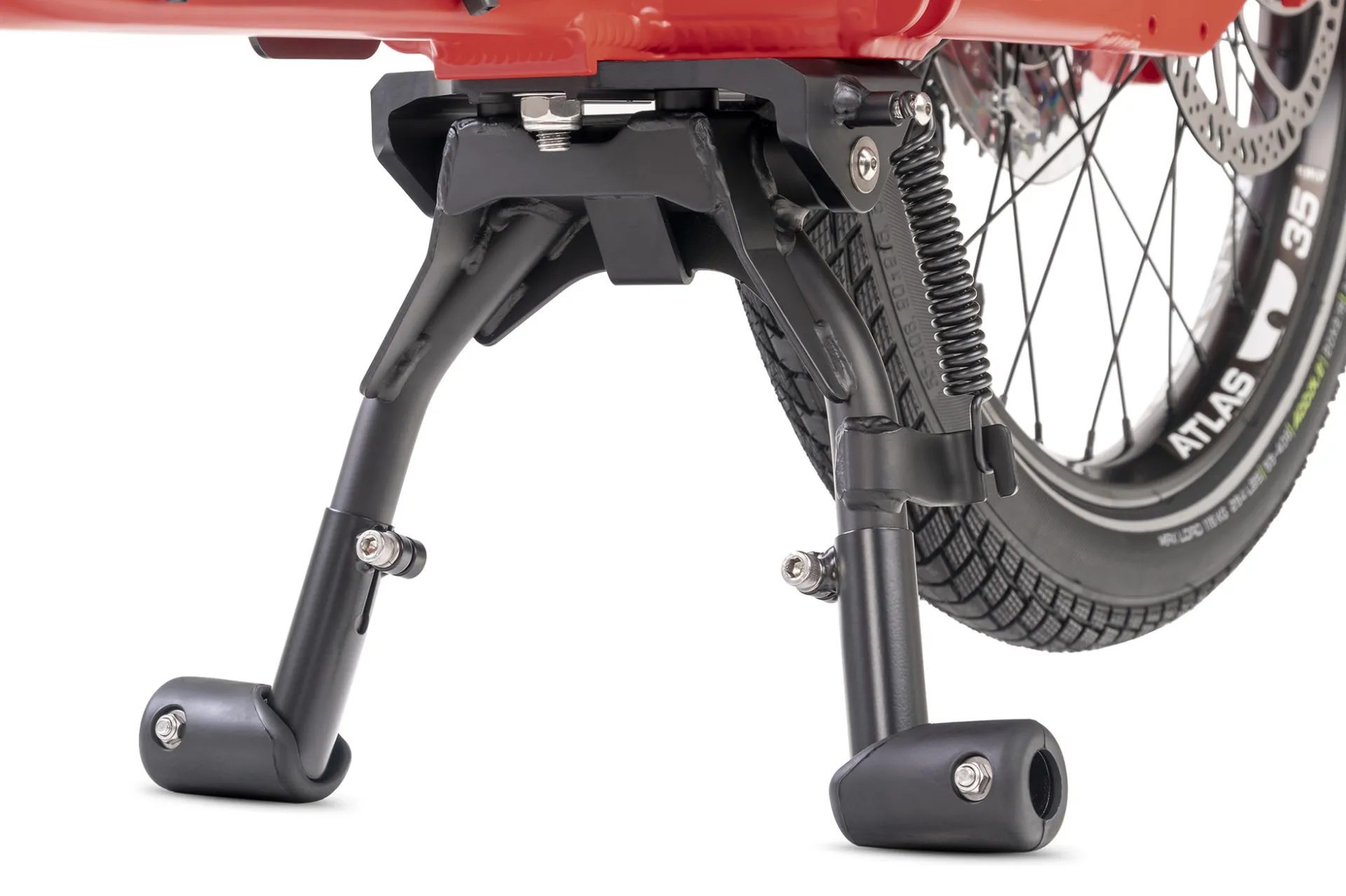

KICKSTAND Atlas Kickstand, for cargo
LUGGAGE SOCKET Combo Mount

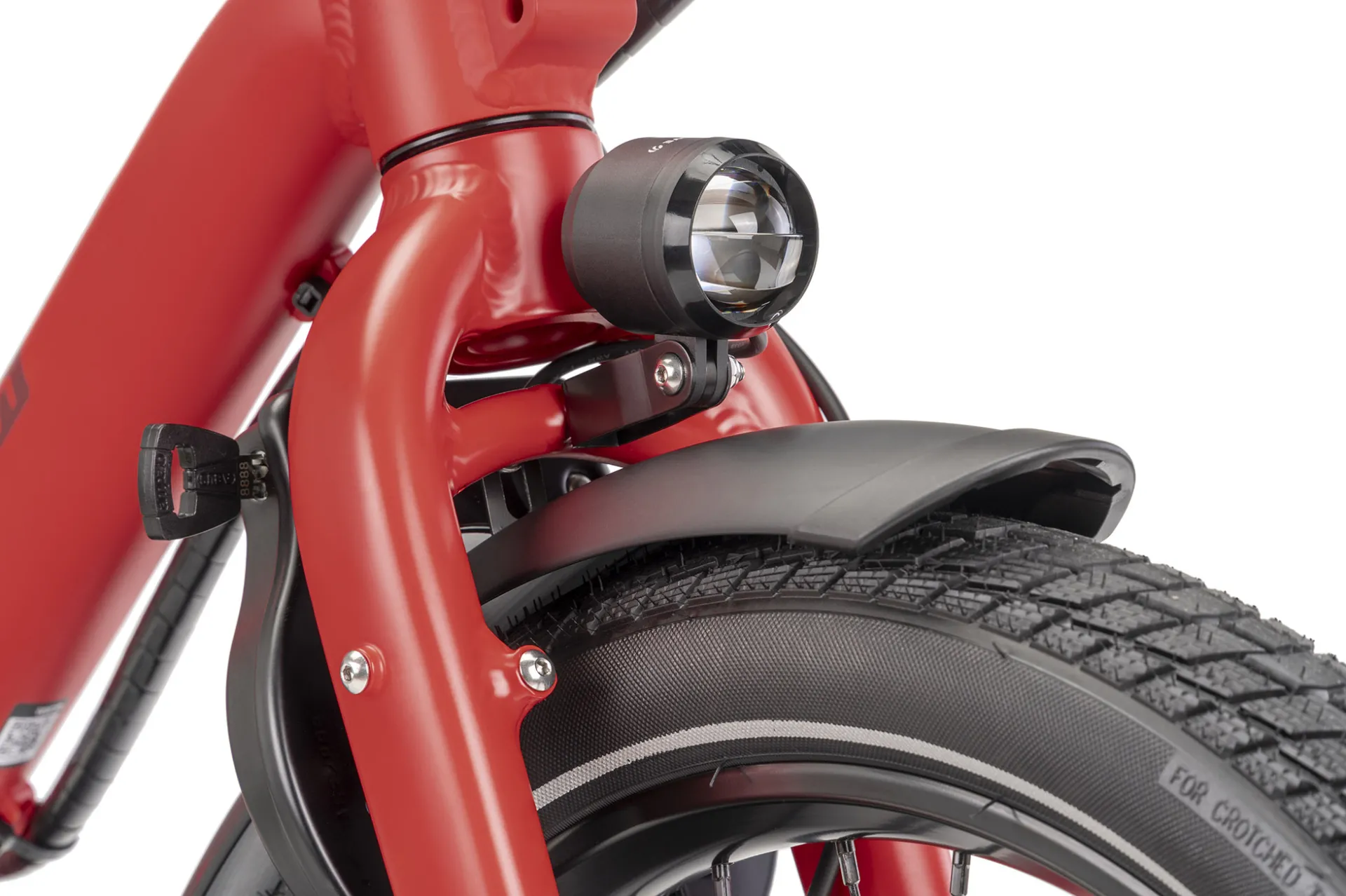

FRONT LIGHT 90 lux, StVZO approved
REAR LIGHT Herrmans
FENDERS SplashGuard, stainless hardware

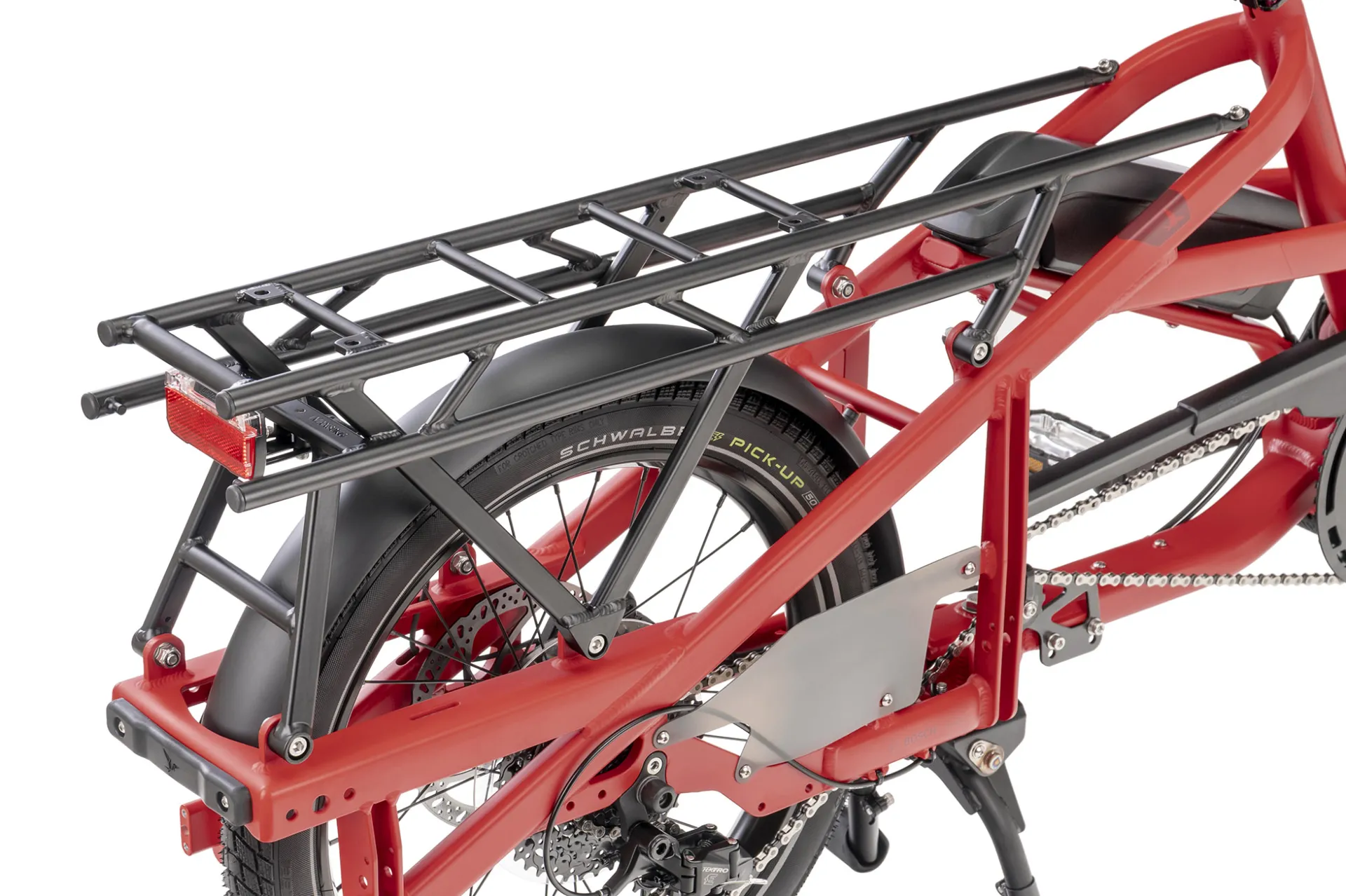

RACK(S) Atlas L, 90 kg (198 lb) capacity

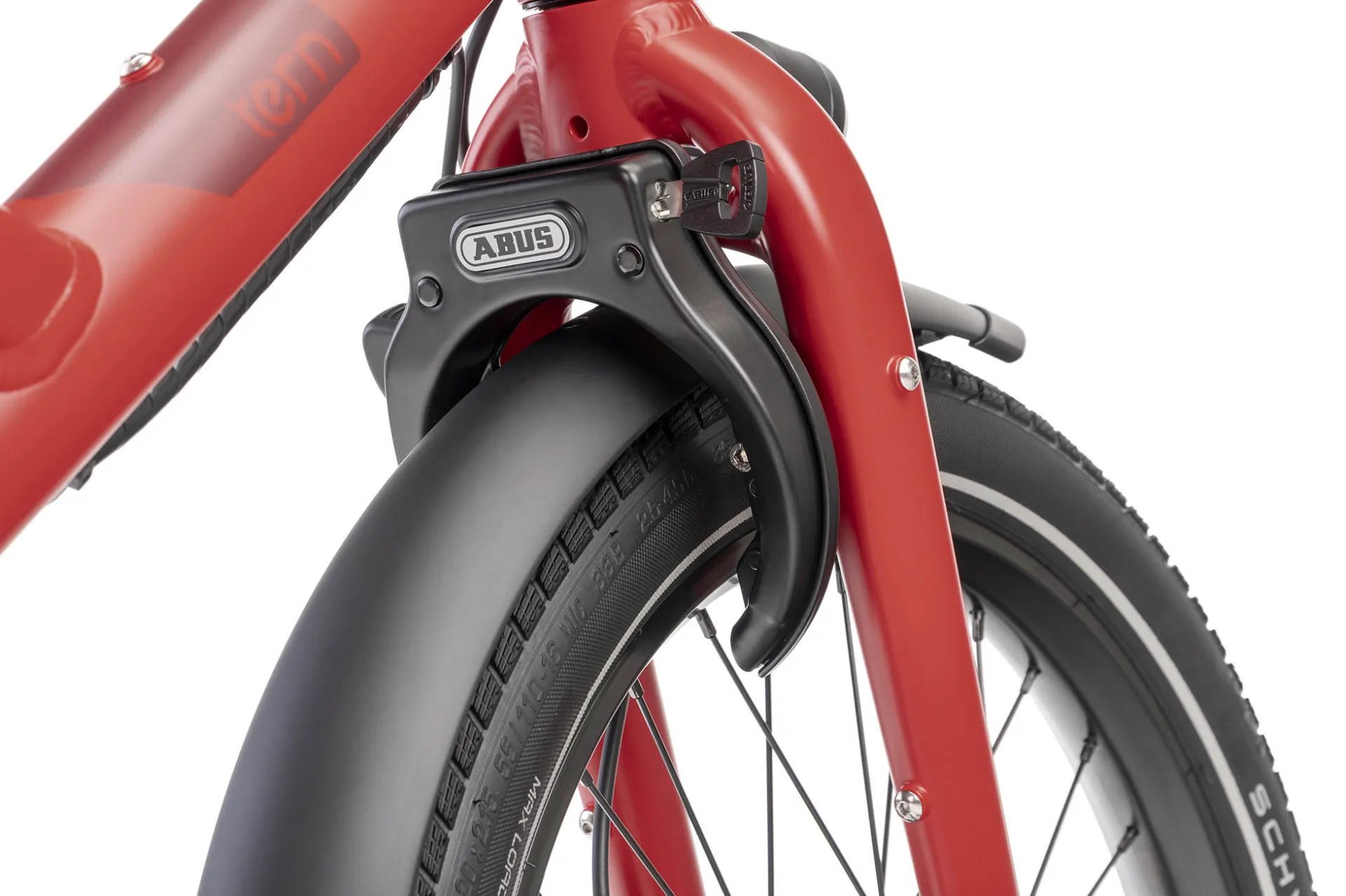

FRAME LOCK ABUS or AXA, keyed-alike with Bosch battery
Is this the right ebike for me?
Tern’s extensive ecosystem of accessories lets you turn Quick Haul Long into the ideal vehicle for your family. Carry the kids safely and in comfort year-round, give your spouse a fun lift on date night, and get errands done efficiently. You can even tow an extra bike, or link a trailer to bring the family dog or anything else that won’t fit on the bike—like your kayaks for a weekend by the lake.
SPEAK TO OUR EBIKE EXPERTS "The Tern’s big selling point is that for all its cargo capacity and versatility, it’s actually no longer than a standard big-wheeled bike."
ebiketips
See the Tern Quick Haul Long D9 in action
