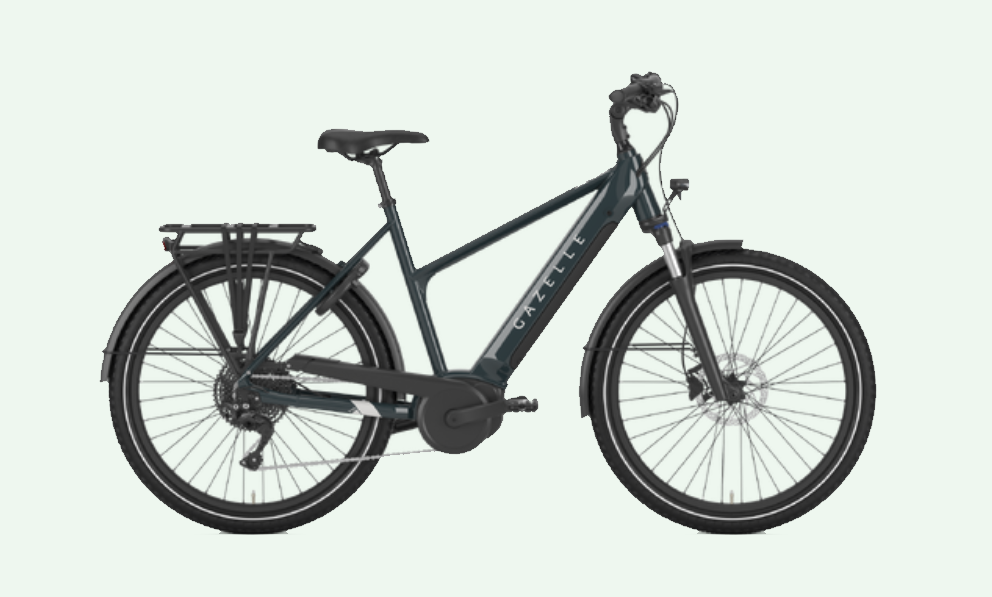

Gazelle Medeo T10

About this ebike...

The Gazelle Medeo T10 – a multi-purpose sporty model with 10 derailleur gears and wide tyres…

Manoeuvrable and sporty:
The sleek lines in particular give the Medeo T10  its sporty appeal. The Medeo is also extremely lightweight, particularly for an e-bike – that’s another tick in the sporty column. The bike responds quickly to steering adjustments by the cyclist and the pressure applied to the pedals. And with the Bosch mid-drive motor, you’ll always have powerful, silent support at your disposal, even if you come across an unexpected hill on your cycle route.

Ideal for the city:
The practical finish and Gazelle’s selection of components ensure that the Medeo T10 can also function well as a city bike. With the high-quality mudguards and gear case you don’t have to wear waterproof trousers to protect you from splashing water. What’s more, the Medeo has solid front and rear lights, a fixed lock and a sturdy side stand. A bag or basket can be quickly mounted onto the luggage carrier. There are also, of course, rubber straps.

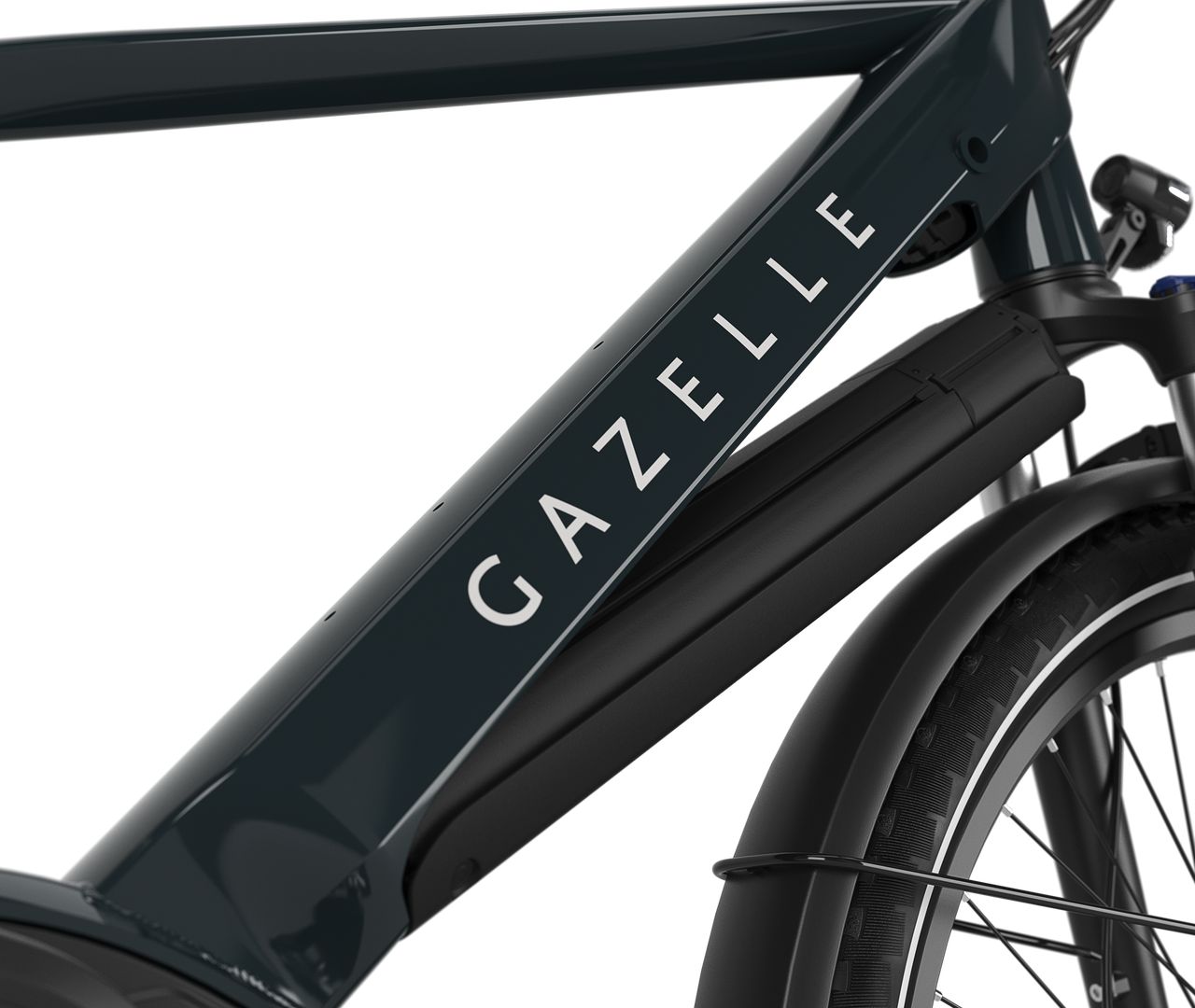

Efficient, integrated power source:
Bosch’s lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike’s range. With the integrated 500-Wh battery, you’ll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using the bike key, so you can recharge the battery anywhere.

This model is also available with a 625-Wh battery.

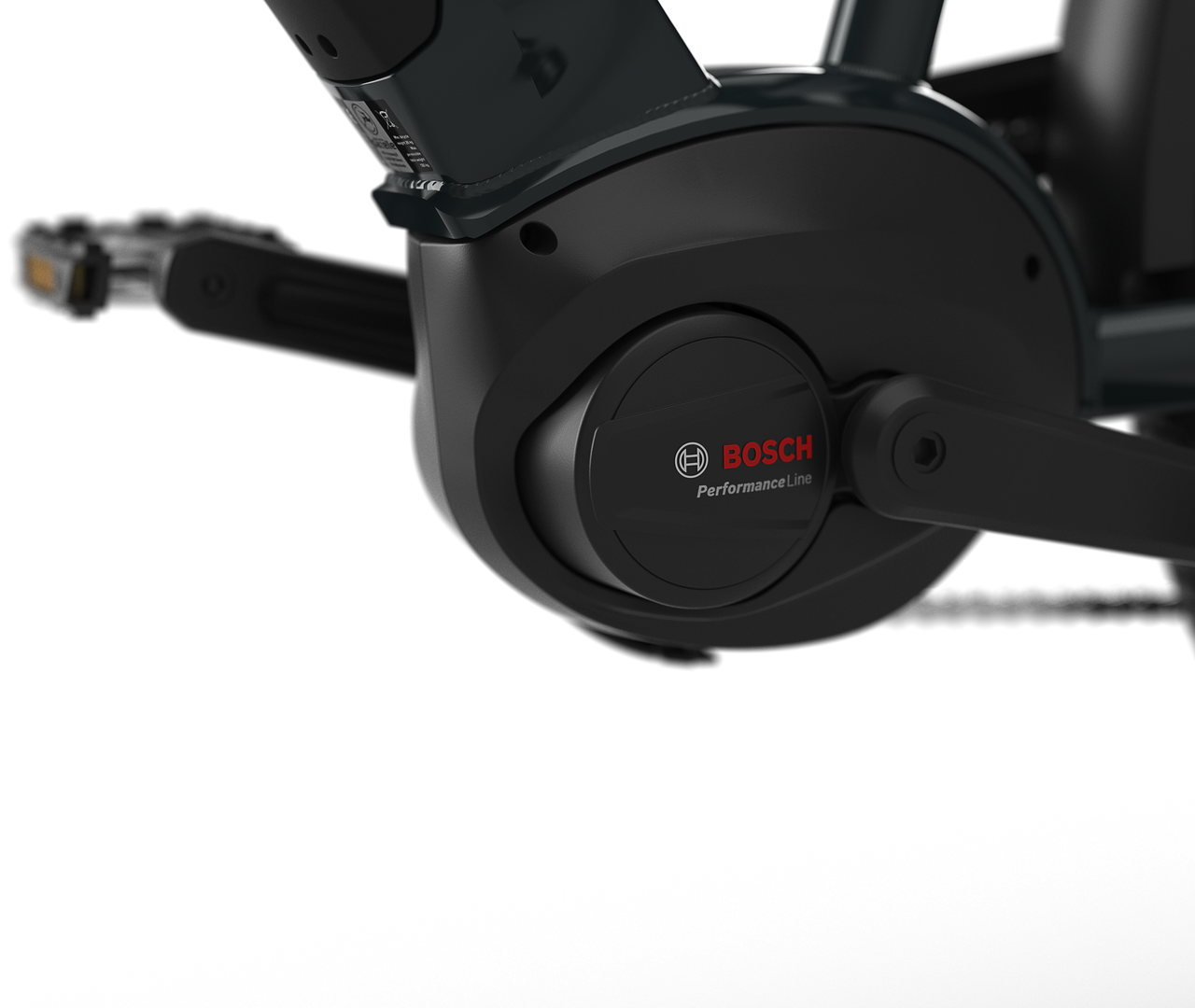

Discover new places with Bosch’s quiet, yet powerful motor:
The Bosch Performance Line gives you everything your cyclist’s heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

Trial this ebike

Fancy taking this ebike for a test ride yourself?

We think it’s important to make sure this ebike feels perfect for you so come along and have a free test ride!

TRIAL THIS EBIKE

Customise this ebike

We know that sometimes you need to adjust a bike to make it a perfect fit and feel “right”. Sometimes it’s just a tweak to the handlebars maybe. Sometimes you may want a different saddle. We will try to make your bike just right for you.

FIND OUT MORE
Free insurance!

2 weeks free insurance cover for all ebikes!

Get in touch

Features we love

heart
Motor Bosch Smart System Performance Line
Gears Shimano Deore, 10 gears
Brakes Hydraulic disc brakes offer braking power and precision.
Battery Bosch 500 Wh lithium-ion battery
Display Bosch Purion 200
Handlebar Herrmans DD36, plastic wear-resistant handlebar grips

The Nitty Gritty

range
Range Eco 130 km / Tour 75 km / Auto 60 km / Turbo 50 km
motor
Motor Bosch Smart System Performance Line
Weight 25.2 kgs (excl. battery)
gears
Gears Shimano Deore, 10 gears
Full specification
Battery Bosch 500 Wh
Ebike battery charging time with 2A charger 7 h 30 m
Ebike battery charging time with 4A charger 4 h 30 m
Range Eco 130 km / Tour 75 km / Auto 60 km / Turbo 50 km
Colours Pine green gloss, turmeric yellow gloss
Fork suspension Telescope, spiral spring
Weight (kg) 25.2 kgs excl. battery
Bike Max. Total Weight (kg) 130
Sitting Position Sportive
Frame description Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material Aluminium
Cockpit Cable Integration Yes
Frame shape High-Step, Mid-Step
Frame Size CM 45, 50, 55, 60
Fork SR Suntour MOBIE A32 DS
Fork Material Aluminium
Fork suspension Telescope, spiral spring
Fork lockout Yes
Front wheel 38
Front & Rear rims Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Front hub Shimano
Wheel Size Front 28"
Wheels Tyre Front Etrto 62-584
Front & Rear tyres Continental Contact Plus
Brand shifters Shimano
Front chainwheel 38
Cassette Range 11-48
Gear Type Derailleur
Number of gears 10
Rear Derailleur Shimano Deore
Drivetrain Chain
Front Brake Type Hydraulic disc brake
Brake sytem code S10
Front Brake Brand Shimano
Primary Rear Brake Model BR-MT200
Front brake Shimano BR-MT200, 180 mm
Rear brake Shimano BR-MT200, 160 mm
Rear Brake Lever BLMT200
Handlebar Herrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable Yes
Saddle DDK
Seatpost suspension No
Front light AXA Compactline 35
Front Light Energy Source Battery
Front Light Lux 35
Rear Light Energy Source Battery
Rear light AXA Blueline
Motor Bosch Smart System Performance Line
System Model Performance Line
Ebike System Brand Bosch Smart System
Ebike Engine Position Mid
Ebike Max Speed kmh 25
Ebike Max Speed mph 15
Engine Max Torque (Nm) 75
Ebike Battery Charger Bosch 2Ah standard charger
Battery Position Intergrated in the frame
Display Bosch Purion 200
Display Removeable Yes
Display Type LCD
Guarantees Frame warranty 10yrs / Fork warranty 5yrs / Paint warranty 5yrs / Other parts warranty 2yrs / Battery warranty 2yrs / Motor warranty 2yrs / Display warranty 2yrs
Lock AXA
ART classification ART**
Kickstand Ursus Mooi
Coat protector Yes
Rear carrier description Aluminum MIK HD system carrier
Rear carrier max load (kg) 27

Is this the right ebike for me?

The Medeo T10 is a great bike if you’re looking for an ideal balance between sportiness and comfort. With a sporty riding position, the bike is perfect for short and longer rides. The sleekly designed, robust and aluminum frame provides more manoeuvrability. This electric bicycle is supported by the powerful Bosch mid-mounted motor. The Medeo is equipped with Shimano hydraulic disc brakes.
