About this ebike...

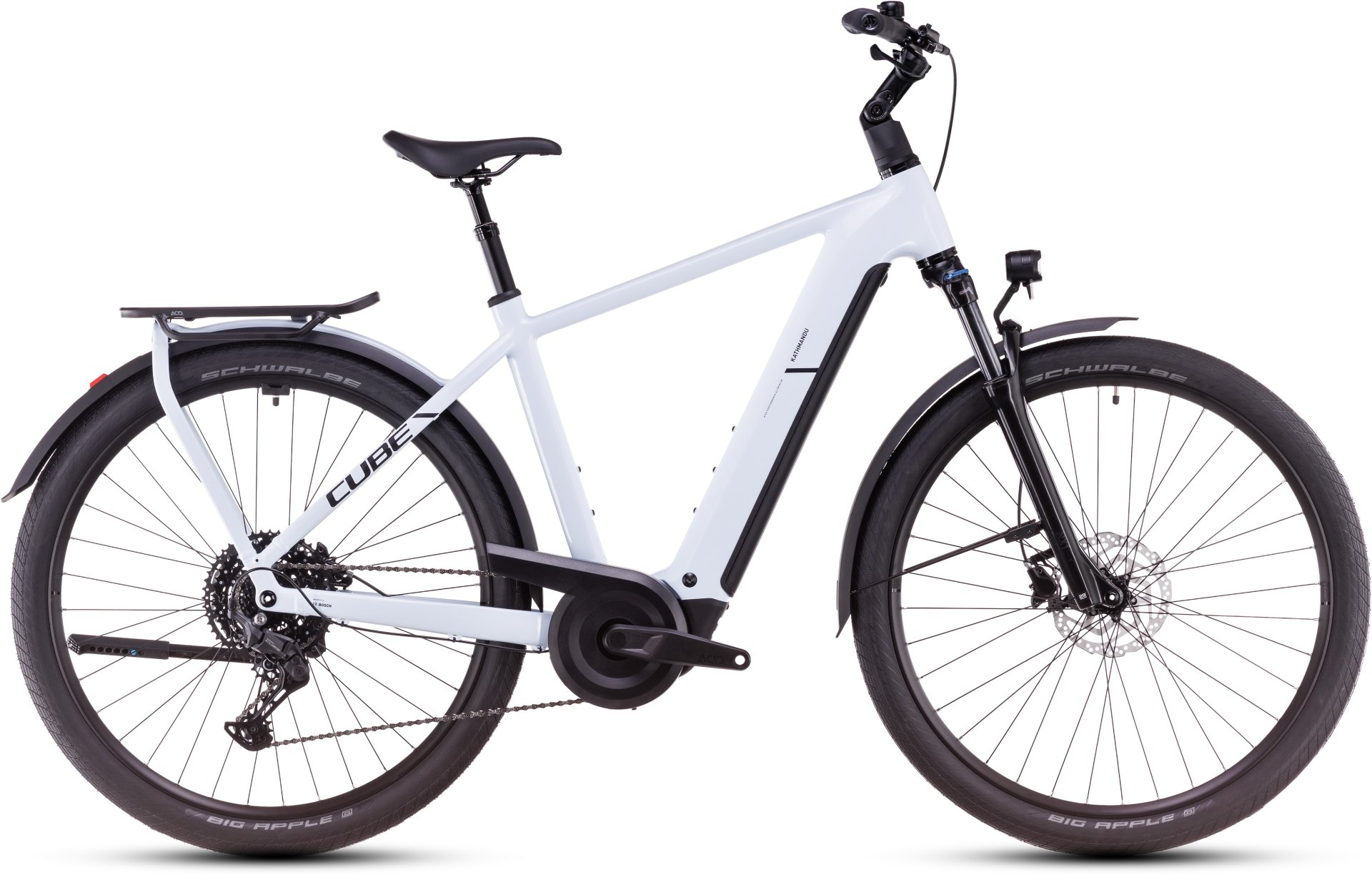

The CUBE Kathmandu Hybrid’s design is classically elegant – familiar, even – but it’s stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100 mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame’s clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there’s an integrated chainguard mount and Cube’s tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

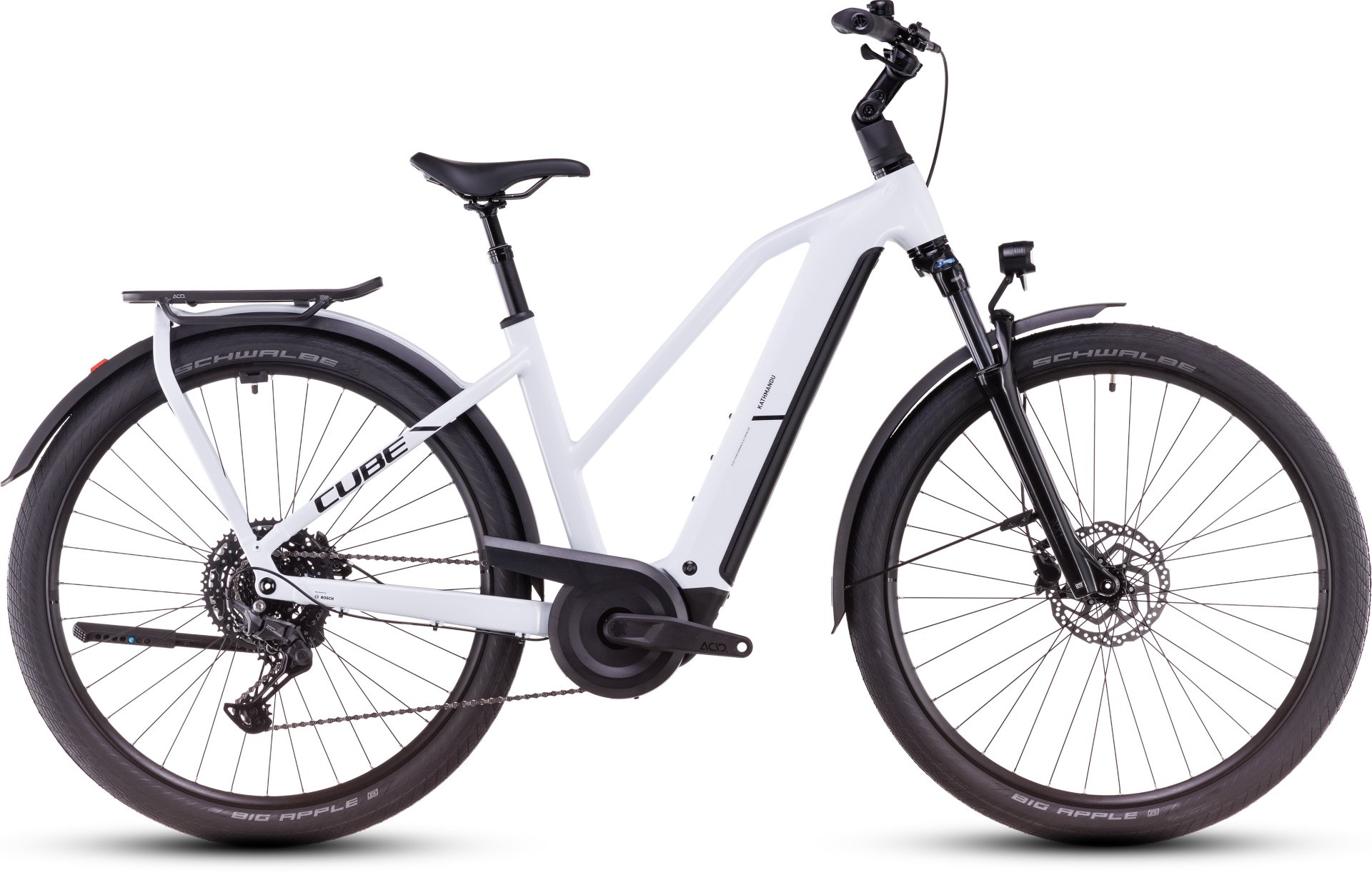

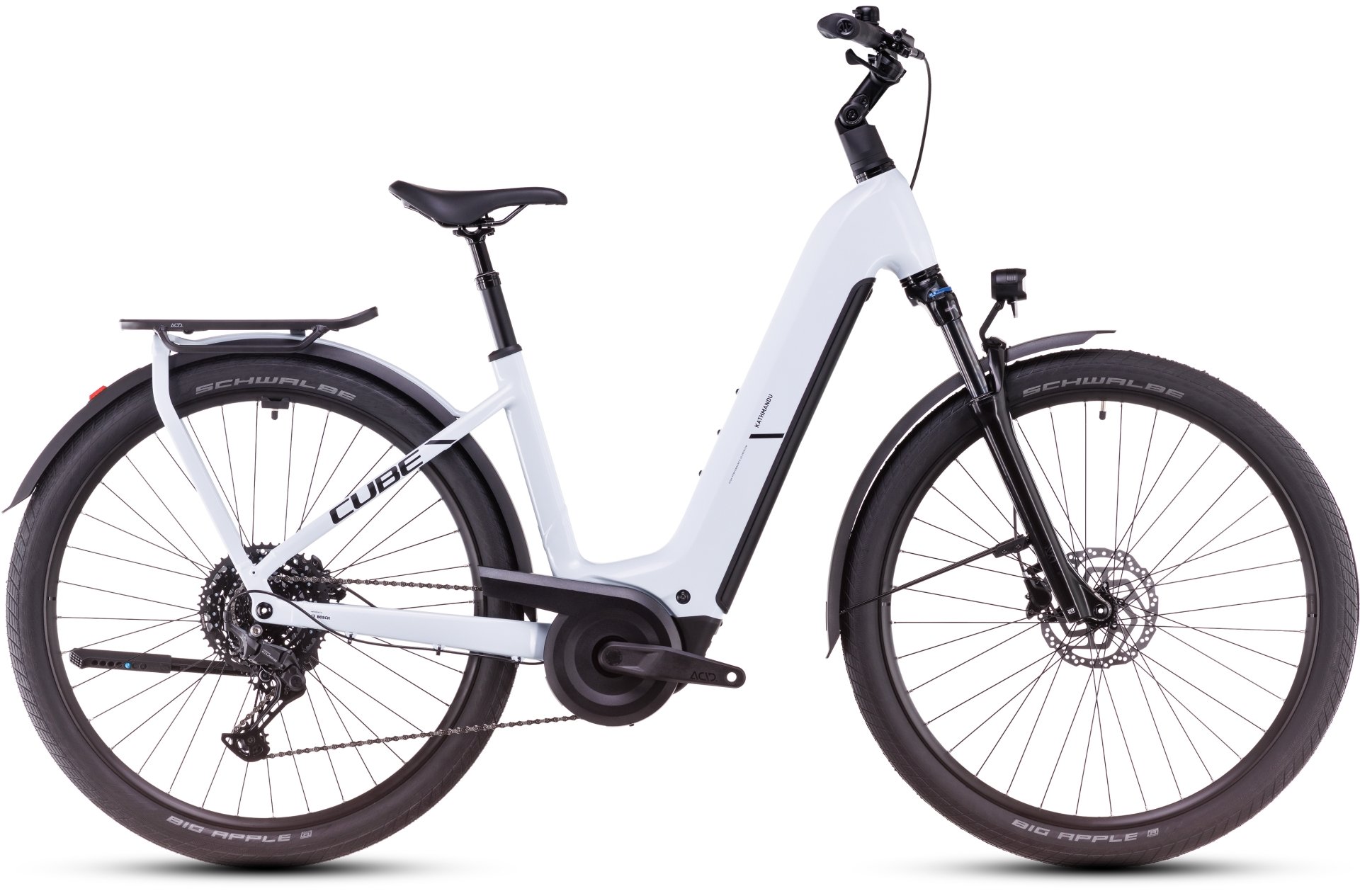

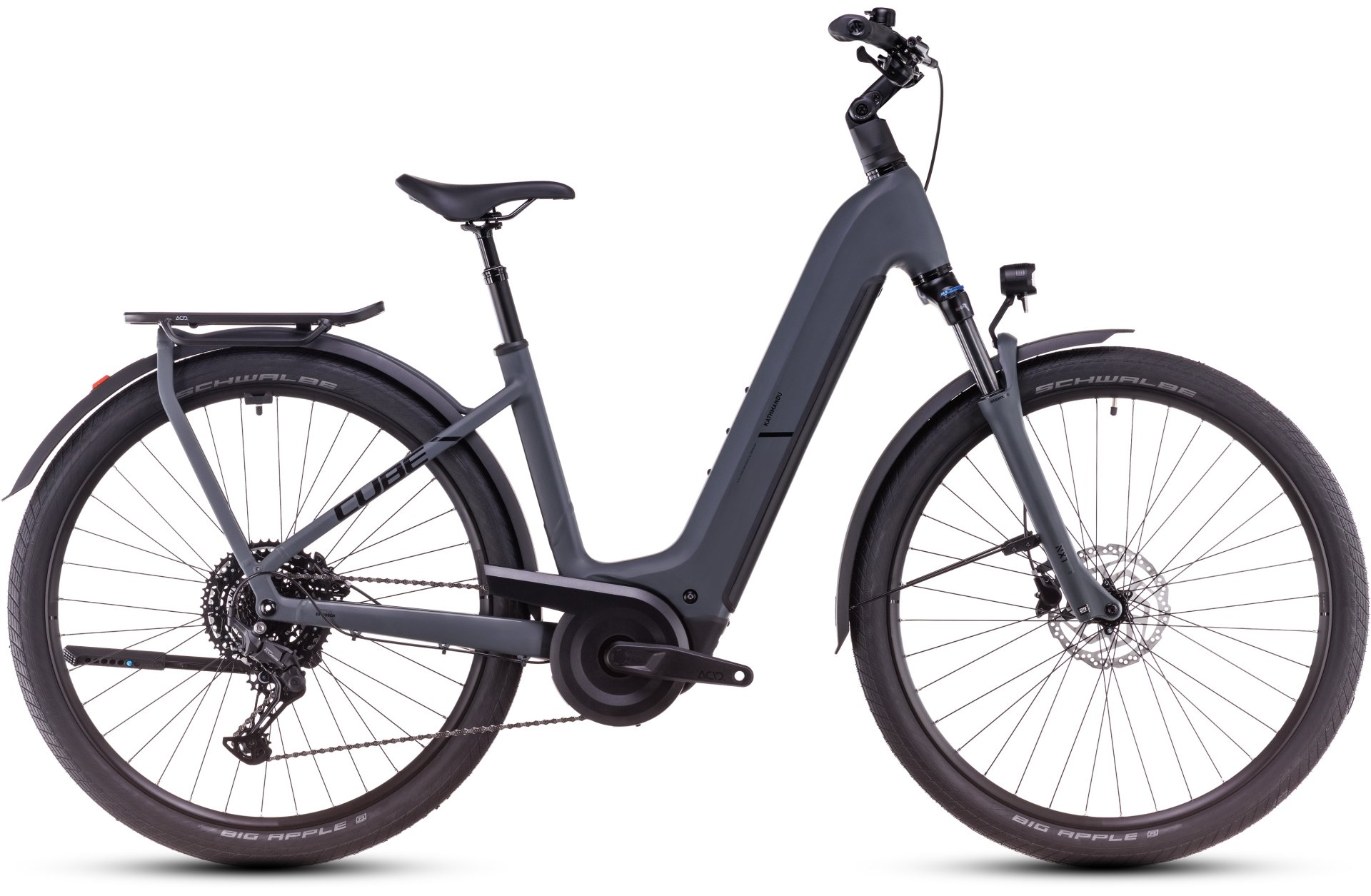

The Kathmandu Hybrid One 800 is available to order in a number of sizes in Crossbar, Trapeze and Easy Entry designs. Please contact Velospeed on 01635 579 304 for further details.
Trial this ebike
Fancy taking this ebike for a test ride yourself?
We think it’s important to make sure this ebike feels perfect for you so come along and have a free test ride!
TRIAL THIS EBIKE
Customise this ebike
We know that sometimes you need to adjust a bike to make it a perfect fit and feel “right”. Sometimes it’s just a tweak to the handlebars maybe. Sometimes you may want a different saddle. We will try to make your bike just right for you.
FIND OUT MOREFeatures we love
Fully Integrated Battery The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft.
Modular Battery System In many ways the battery is the heart of an e-bike. That's why, with Cube's Modular Battery System, they've made a setup that's easy to use. You can charge the battery on or off the bike, and there is room for even high capacity batteries.
Integrated Carrier 3.0 The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
Aluminium Superlite Frame CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then they make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
Front Carrier Ready Carrying your belongings, shopping or work bag just got a little easier. Cube's new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.
The Nitty Gritty
Range Up to 80 miles
Motor Bosch Performance Line CX, Smart System
Weight 27.5kg
Gears Shimano Cues RD-U6000-GS, 10-Speed
Full specification
Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Suspension Fork SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
Motor Bosch Performance Line CX (85Nm), Smart System
Battery Bosch PowerTube 800
Charger Bosch 2A
Remote Bosch LED Remote
Display Bosch Purion 200 w/ Integrated Display
Brake System Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur Shimano Cues RD-U6000-GS, 10-Speed
Shifters Shimano Cues SL-U6000, Rapidfire-Plus
Crankset ACID MTB Hybrid Pro
Cassette Shimano Cues CS-LG300, 11-48T
Chain KMC eGlide
Headset ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 700mm
Grips ACID Travel Comfort
Rims CUBE EX25, 36H, Disc, Tubeless Ready
Front Hub CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub Shimano FH-MT400-B, 12mm, Boost, Centerlock
Tyres Schwalbe Big Apple, Active, 55-622
Saddle ACID Sequence Pro Plus
Seatpost CUBE Suspension Seatpost HD, 31.6mm
Pedals ACID PP MTB
Front Light ACID Front Light PRO-E 60 X-Connect, 12V, DC
Rear Light ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand ACID FM Pure Kickstand
Mudguards ACID 65 Integrated Carrier 3.0
Bell Easy Bell
Carrier ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Colours metallicgrey´n´grey ; pea´n´green
Sizes Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS / 46cm, S / 50cm, M / 54cm, L / 58cm; Easy Entry: XS / 46cm, S / 50cm, M / 54cm, L / 58cm, XL / 62cm
Weight 27.5kg
Is this the right ebike for me?
Adventure is what you make it, and the Kathmandu Hybrid ONE 800 from CUBE is ready whenever you are. With its 800 Wh PowerTube battery and powerful Bosch CX drive, you’ve up to 85 Nm of pedalling assistance at your disposal. Combined with the easy shifting and wide range of Shimano’s Cues 1×10 gears, it’s more than enough to take on any route with ease. The Suntour air suspension fork, suspension seatpost and adjustable stem are all there to make even long days in the saddle enjoyable. Strong, dependable Shimano hydraulic disc brakes give you safe stopping in all weathers. And a full complement of accessories, including lights and mudguards to accompany our Integrated Carrier 3.0, means you’re ready for anything.
